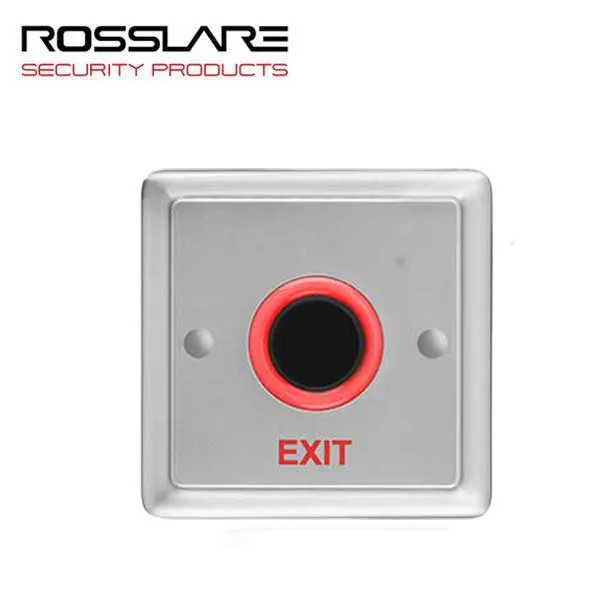

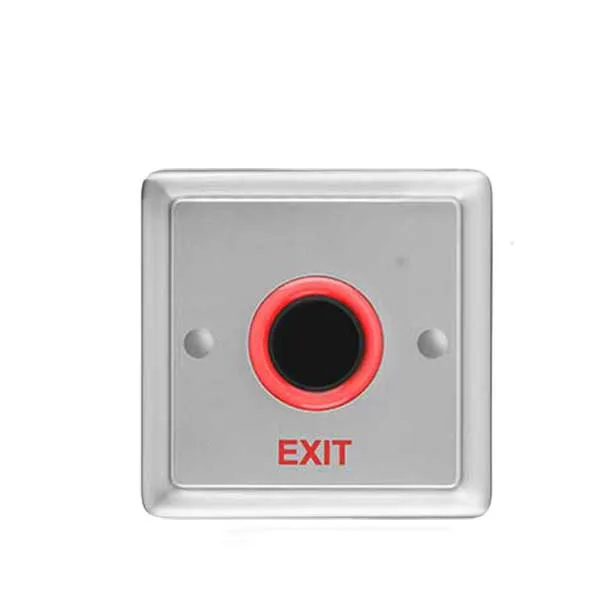

The EX-M22 is a passive infrared motion sensor (no touch switch). The new access control switches are designed as flush mounting for US and UK electric boxes with passive infrared technology The switches have a red/green LED ring to display the
switch status. The switches are designed as Request to Exit (REX) buttons for access
control systems, direct activate electric strike, or magnet locks with up to 30 VDC and 1A.
Features:
- Solid state piezoelectric switch technology
- N.O. and N.C. relay pulse simply by the touch of a finger
- Output and Indication Toggle Option
- Adjustable Output and LED Indication Time of 1 to 60 Seconds
- Light Ring Status Indicator and Accidental Activation Hindrance
- Jumper Selectable Illumination Status Red Green, or No Illumination
Specifications:
| Type |
Infrared |
| Sensor / Switch Type |
Motion |
| Operating Voltage |
8-30 VDC |
| Led Type |
Ring |
| IP Rating | IP68 |
| Button | No Touch |
| Dimensions | 92 x 92 x 10 mm (3.62 x 3.62 x 0.39 in.) |
| Operating Temperature | -10˚C to 50˚C (14˚F to 122˚F) |
| Storage Temperature | -20˚C to 60˚C (-4˚F to 140˚F) |
| Manufacturer's Warranty: | Limited Product Warranty |
